BROGRUND

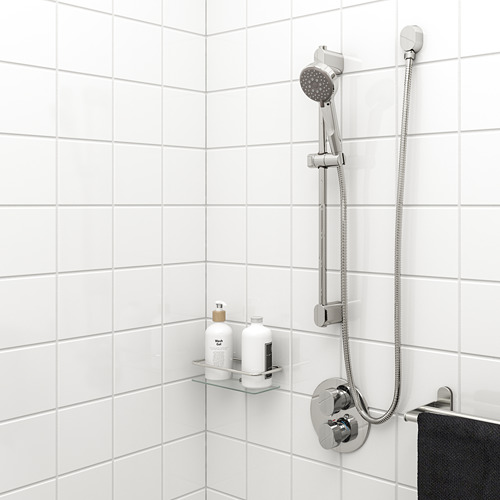

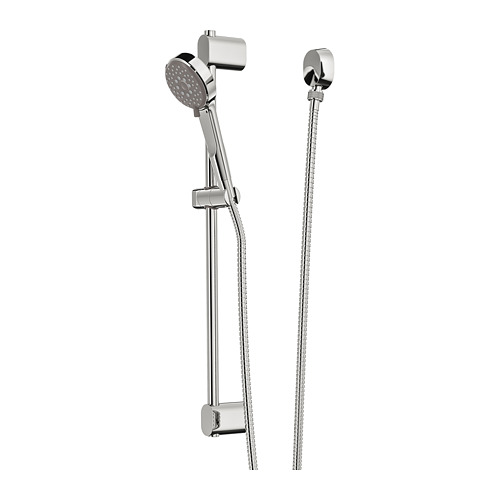

Riser rail with hand shower/outlet, chrome plated

RD$5,495

5% Discount with IKEA Family
WAA 503.426.28
Parcel Delivery to Santo Domingo, La Romana, Santiago and Bávaro for RD$ 290

BASTSJÖN
Shower curtain, white/gray/beige

RD$895

More options available

BJÄRSEN
Shower curtain, white

RD$299

BOTAREN
Shower curtain tension rod, white

RD$575

More options available

HASSJÖN
Shower curtain rings, white

RD$59 / 12 pack

RÅNEÄLVEN
Shower curtain, white/turquoise

RD$695

TÄRNAÅN
Shower curtain, white/white

RD$895

TOLFSEN
Shower curtain, dark gray/sateen stripe

RD$895

VÄNNEÅN
Shower curtain, white

RD$595

More options available

VATTENSJÖN
Shower curtain, white blue/fish

RD$695

BROGRUND
Bath/shower set thermostatic faucet, chrome plated

RD$12,495

RD$8,495

-32%
BROGRUND
Towel holder, 3 bars, stainless steel

RD$1,495

BROGRUND
Towel rail, stainless steel

RD$995

KALKGRUND
Shower shelf, chrome plated

RD$1,125


Key features

3-year warranty. Read about the terms in the warranty brochure.

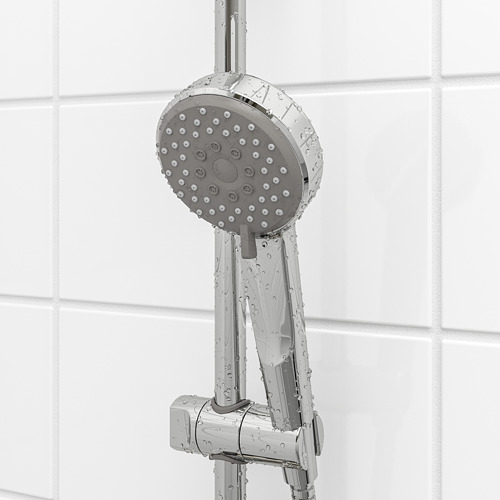

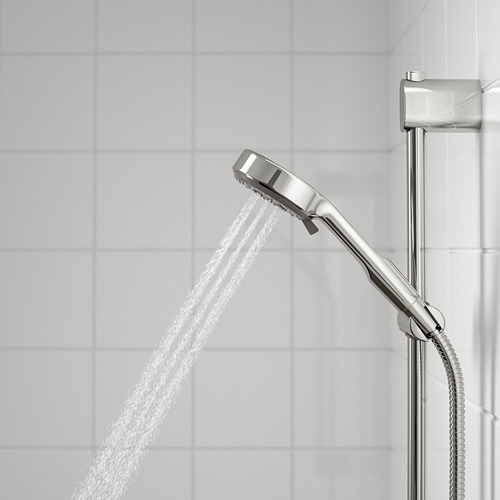

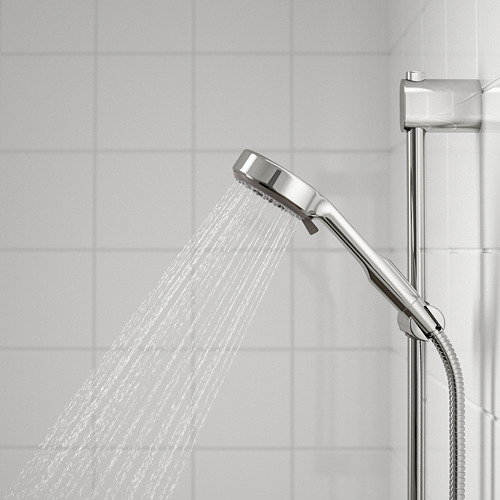

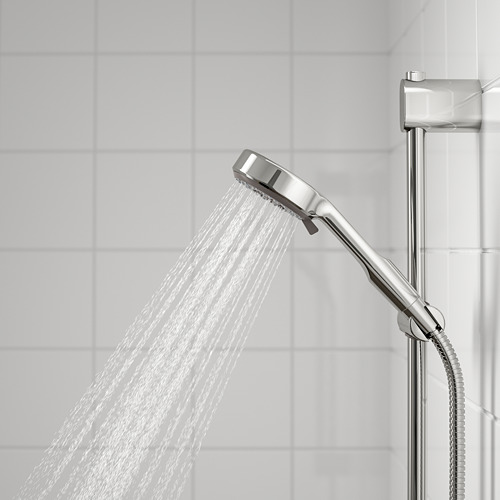

This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience.

The chrome-plated surface is a hard, durable and easy to clean.

The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair.

You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds.

You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail.

Easy to clean by rubbing the rubber nozzles on the showerheads.

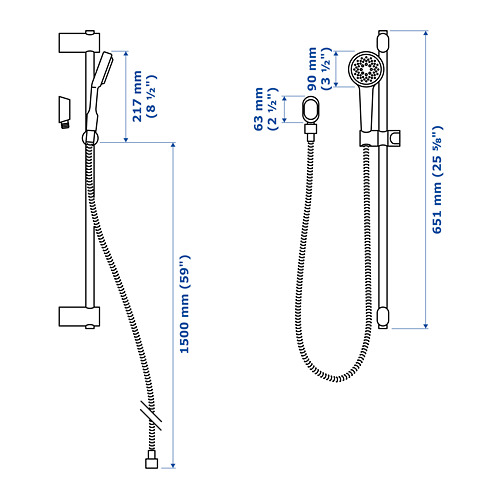

Assembled size

Hand shower diameter:3 ½ "
Length of hose:59 "
Height:25 ½ "

Package size & weight


Article no: 503.426.28
Packages: 1
Length: 27 ½ "
Width: 8 ¼ "
Height: 2 ¼ "
Weight Gross: 4 lb 8 oz
Weight Net: 3 lb 5 oz
Volume per package: 0.29 cu.ft

Care instructions

To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water.

Rub away limescale deposits with your hands.

Check the washers on a regular basis.

Clean with a soft damp cloth only using water and a mild washing-up detergent or soap. Never use scouring powder, steel wool, a descaling agent or a detergent that is acidic or contains alcohol or an abrasive.

Good to know

Comes with full, mist, full/mist spray functions.

Shower hose included.

Wall fittings included.

Pressure compensating flow regulator included.

The hand shower water consumption is 1.8 gpm.

Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

Can be used with other products in the BROGRUND series.

Shower with a clean conscience

Each of our head/hand showers has a small pressure compensating washer (PCW) that reduces water flow while maintaining the pressure. It’s a small part of our bigger effort to conserve water. We’re committed to being water positive by 2020, that is, conserving more clean water than we use. And every water-saving action adds up.

Everything you need for a great shower experience

Our shower range offers everything you need for a pleasant shower. The thermostatic shower faucets come with “cold touch”and anti-scald technology. The shower head and hand showers come with different spray functions and a pressure compensating function that reduces water- and energy-use by up to 30%. There is a range of coordinated bathroom accessories that keep all those bottles off the floor. Add to this, a 10-year limited warranty on the thermostatic shower faucets and a 3-year limited warranty on riser rails, hoses, head and hand showers.

A shower just the way you like it

Our shower heads and handheld showers provide individual comfort with the option to choose between 1, 3 or 5 spray functions. Choose FULL for a wide and even coverage; MESH to boost the force; MASSAGE to vary the flow; or MIST to de-stress with fine, gentle droplets. You can also choose combinations like FULL/MIST, FULL/MESH or FULL/MASSAGE. All shower faucets have a pressure compensating function that reduces water use and gives you an even flow – even when the water pressure changes.

Efficient showers for everyday indulgence

When you stand in the shower in the morning and rub the sleep out of your eyes, spraying water may seem like a given. But the world's fresh water is limited and we need to help nurture it. That's why we developed our shower range with technology that helps you save up to 30% water and energy. The secret was to find the right balance between the water spray and water consumption, so you use less water without losing out on a nice shower experience.

Designer

H Preutz/N Karlsson

Environment

As a part of our effort to phase out hazardous materials from our products, we made our shower hoses PVC-free. In fact, all IKEA products are PVC-free except for cords in electrical products. Water is precious and should not be wasted. That’s why all our faucets and showers have a mechanism that helps save water and energy while keeping the water pressure just right. Good for us and our planet.

Materials

Handheld showerhead inner housing:
Acetal plastic
Handheld showerhead outer housing/ Rail fixture:
ABS plastic, Chrome plated
Nozzle:
Synthetic rubber
Rail:
Stainless steel
Inner hose:
Polyethylene
Outer hose:
PET plastic
Holder:
ABS plastic, Acetal plastic, Chrome plated

Assembly instructions

Advice instructions

Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
