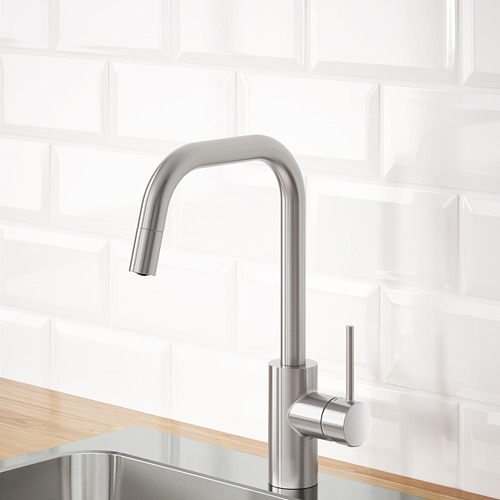

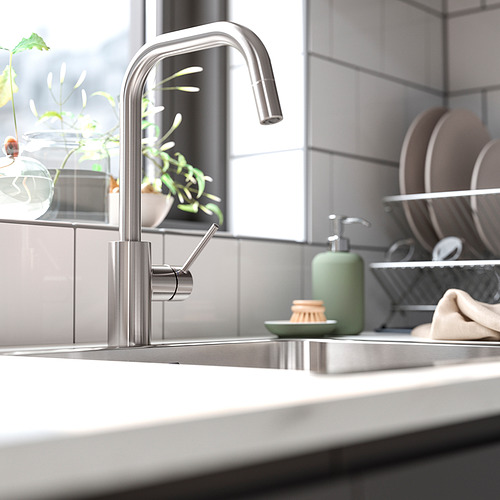

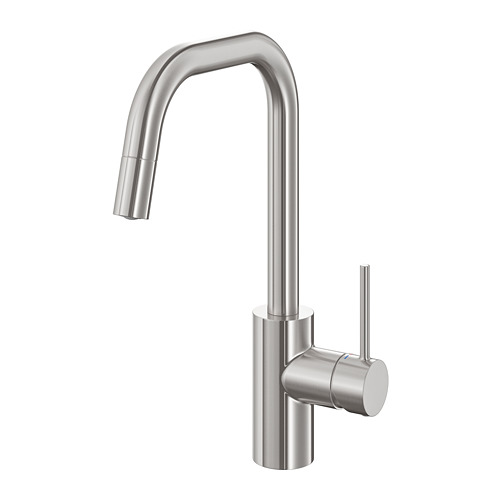

ÄLMAREN kitchen faucet with pull-out spout, stainless steel color
This faucet helps lower water and energy use so you can lower your bills too. The high, pull-out spout is handy for rinsing dirty plates and the quality is built to last through many years of washing.
Features
Key features
A counterweight makes the hose easily retract back into the kitchen faucet.
10-year Limited Warranty. Read about the terms in the Limited Warranty brochure.
You save water and energy, because the faucet has a mechanism that reduces water flow while maintaining pressure.
Rinsing dishes is easier with the pull-out spout.
The faucet insert has hard, durable ceramic discs that can handle the high friction that occurs when you change the temperature of the water.
Equipped with check valve to prevent back flow.
Designer
Good to know
Tested and certified according to applicable codes and standards including: ASME A112.18.1/CSA B125.1, NSF 61 and NSF 372.
This tap is for use on high pressure water systems. Tested to work with a max. pressure of 10 bar (1000 kPa). Recommended working pressure range is 1.0 – 5.0 bar (100 kPa – 500 kPa).
If you are uncertain about the installation, contact a professional. The installation shall be made in accordance with valid local building and plumbing regulations.
To be mounted in a 1⅜" hole in a max. 2" thick sink/countertop.
To make a hole for the kitchen faucet, FIXA 2-piece tool set can be recommended; sold separately.
Water and energy saving aerator (1.5 gal/min.) for high-pressure systems included.
Connection hoses with 9/16" connection included. Length: 13¾".
A tool is included that makes it easy to install the faucet in place.
Flow rate: 1.5 gpm which equals 5.7 l/minute.
Max. temperature hot water connection 80°C/176°F. Recommended temperature is 65°C/149°F.
Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com.

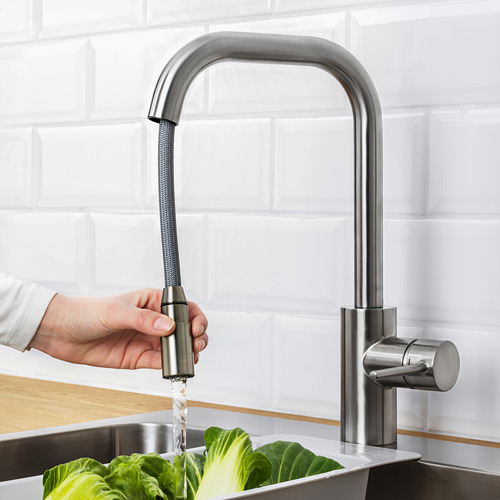

The spout can be pulled out approx. 12".
Swivel spout 120°.
Saving water at every step
When you use an IKEA kitchen faucet, you're saving water thanks to an aerator that reduces flow while maintaining pressure. We didn't invent aerators, but think they are a good example of how we value water. It's one of Earth's most precious resources, yet very little of it is drinkable and even less is accessible. No organism can survive without it either. That's why we want to be good stewards of water at every step, whether in our factories or in your kitchen faucet.

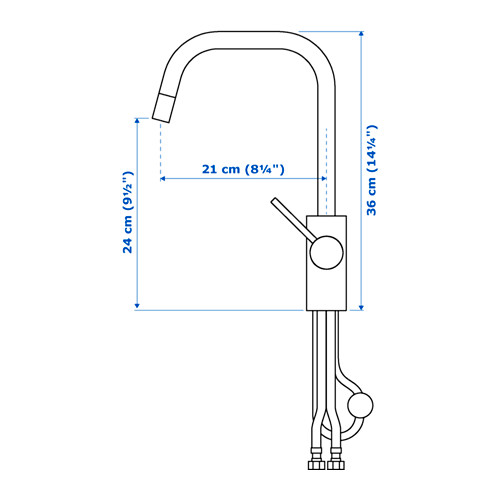

Assembled size
| Height: | 14 ¼ " |
|---|
Package size & weight.
Do you take it home? Make sure it fits in your vehicle.
| Length: | 21 ½ " |
|---|---|
| Width: | 11 ½ " |
| Height: | 2 ¾ " |
| Weight Gross: | 6 lb 6 oz |
| Weight Net: | 4 lb 15 oz |
| Volume per package: | 0.39 cu.ft |
Materials
Care instructions
Do not use scouring-powder, steel wool, hard or sharp tools which can scratch the surface.
Wipe clean with a soft cloth dampened with water and a mild dish detergent or soap, if necessary.
Wipe dry with a clean cloth.
Environment
Technical information.
| Type of faucet | . |
|---|---|
| Applicable product standards | . |
| Max. flow rate at 3 bar | . |
| Max. static pressure | . |
| Tested up to a max. static pressure | . |
| Min. working pressure | . |
| Recommended working pressure | . |
| Max. hot water temperature | . |
| Recommended hot water temperature | . |
| Recommended cold water temperature | . |
| Connection hoses length | . |
| Hose connection size | . |
| Max. worktop thickness | . |
| Mounting hole measurement | . |
| Strainer included | . |
| Third party certified by | . |
Assembly instructions
Only the latest versions of these documents are available for download. This means that there may sometimes be differences between the documents you download and the versions that come with the product.
